Bag Master Platinum Packaging Machine

WPMC BAG MASTER PLATINUM

THE WPMC BAGMASTER PLATINUM

Precise weighing for your accurate needs

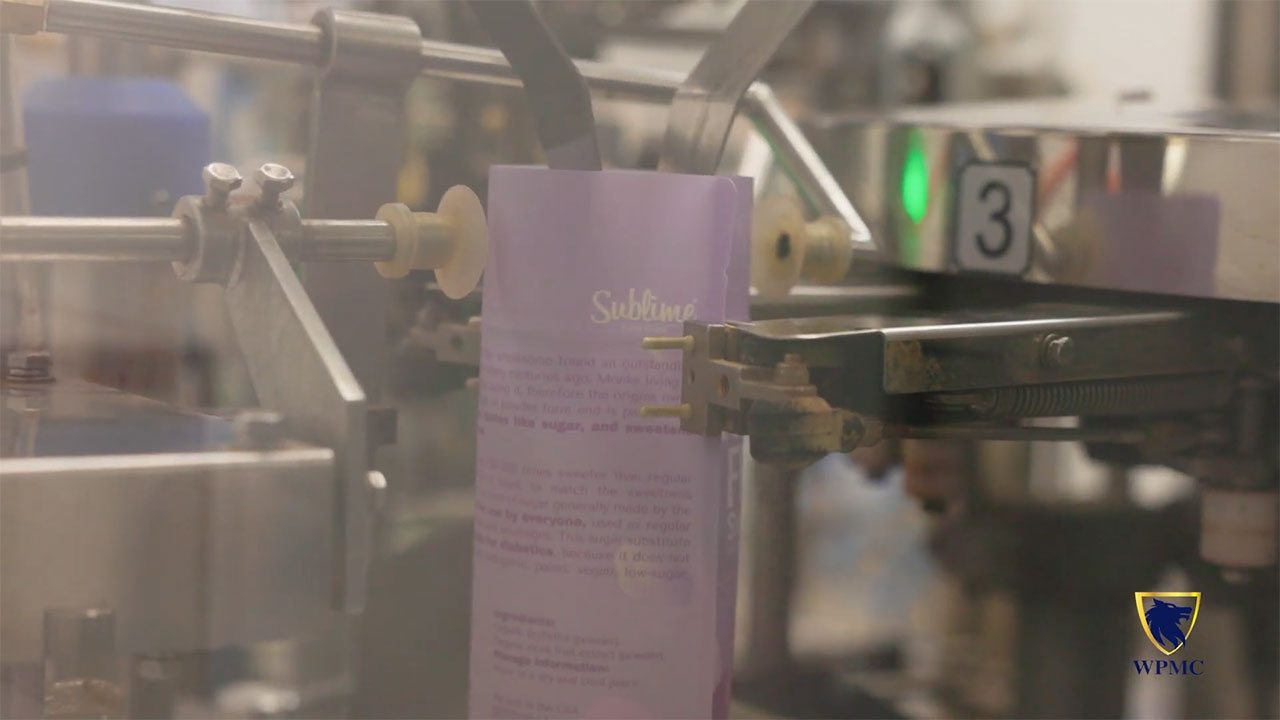

Our most popular simplex premade pouch filling and sealing machine, for bags up to 235 mm wide at speeds up to 60 cycles per minute. Now able to fill and seal standcap pouches!

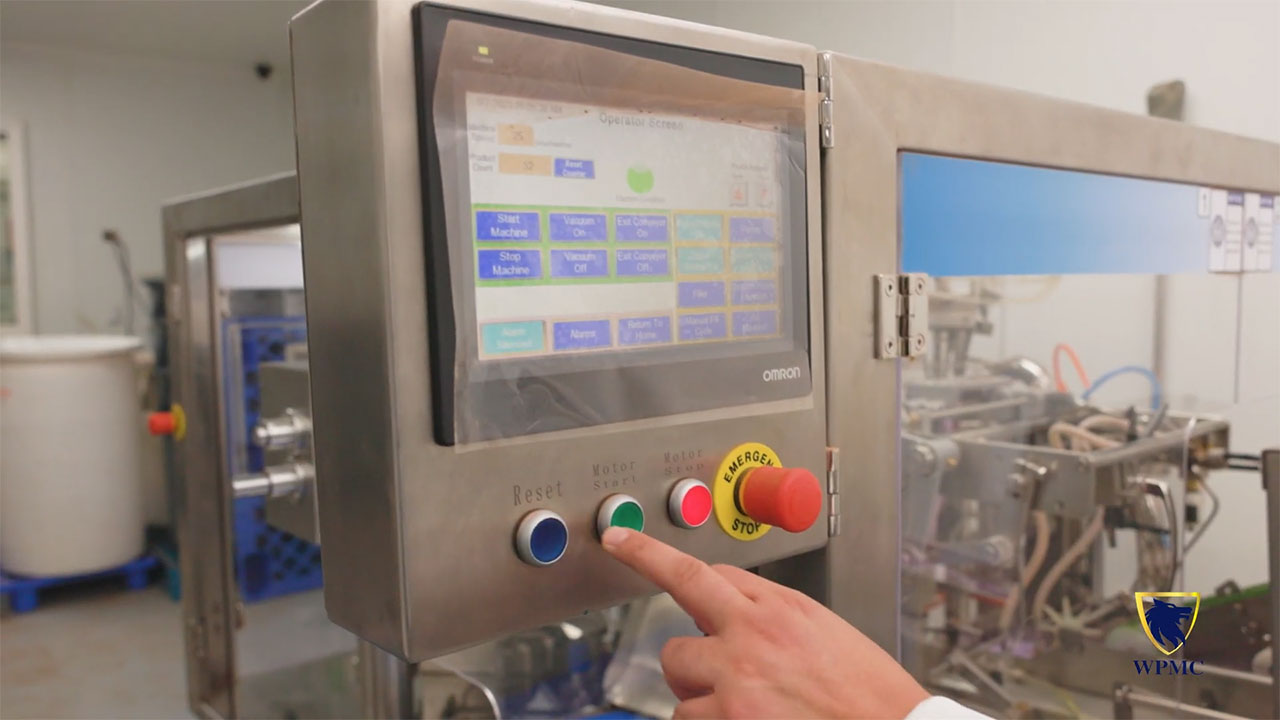

Featuring 8 stations, PLC control with touch screen operation, highly durable welded stainless steel frame.

Maximize your ROI with a simple but powerful packaging solution. Simplex rotary automatic pouch packing machines feature a single lane for consistent throughput. Great for a variety of products including liquids, solids, and powders, the rotary premade pouch machine will enable your business to scale up quickly.

Features

Robotic pick and place infeed system
Integration with multi-head scales, volumetric auger,
Fully interlocked safety guards
Zipper opening device
Extended Bag Machine
Product settler

Snacks

Chips

Nuts

Candy

Supplements

Produce

Bag Master Platinum
Model No.	Bag Width	Bag Length	Packaging Speed	Electricals	Compressed Air
PBM-190	90-190mm	100-380mm	Up to 25-40ppm	220v,30A,Three phase, 50-60Hz	90-120PSI/20CFM
PBM-210	100-210mm	100-380mm	Up to 25-40ppm	220v,30A,Three phase, 50-60Hz	90-120PSI/20CFM
PBM-270	140-270mm	100-380mm	Up to 25-40ppm	220v,30A,Three phase, 50-60Hz	90-120PSI/20CFM
PBM-330	200-330mm	100-380mm	Up to 25-40ppm	220v,30A,Three phase, 50-60Hz	90-120PSI/20CFM

See Our Machines In Action

General Specification

Meet A Valued Client

Meet David Figueroa and Frank Medina of Ibitta Enterprises based in Los Angeles. They chose to go with our WPMC Bagging System, and have not looked back!
